Caddy reverse proxy with Pi-hole local DNS setup

Introduction

I wanted to use Caddy’s reverse proxy functionality to browse my web applications using DNS instead of an IP address with a port number. For my Homer dashboard, I now browse to homer.home.arpa instead of an IP address and port number. Caddy also automatically converts the connection to HTTPS, which is a great feature!

This is why I use the macvlan option with Docker or Podman containers whenever possible, ensuring each container gets its own IP address. Using a macvlan with its own IP address simplifies the configuration of the reverse proxy, allowing each container to be accessed via DNS rather than an IP address with a port number.

Requirements

Ensure Caddy and Pi-hole are running, for example with Docker or Podman.

Setup

Caddyfile configuration

It is very easy to configure a local reverse proxy with Caddy. Add the following to the Caddyfile:

/etc/caddy/Caddyfile
# To edit use your text editor application, for example Nano
# {
#       debug # When things aren't working the way you'd like
# }
homer.home.arpa {
        tls internal
        handle {
                reverse_proxy <IP address>:<port>
                flush_interval -1
        }
}
# IMPORTANT: Please read the instructions below
Instructions:
  • Required Replace homer with your name and home.arpa with your top level domain
  • Required Use the setting tls internal for locally-trusted certificates. Please see the Caddy docs for more information
  • Required Replace <IP address>:<port> with the IP address and port. In this example I use the IP address and port of my Homer NixOS container. Please see the Caddy docs for more information about the handle directive
  • Optional The setting flush_interval -1 was needed to solve some problems but I’ll mention it anyway. Please see the Caddy docs for more information

If you are using NixOS, the above Caddyfile is also very easy to add decleratively to configuration.nix. I’ll give you an example with two virtual hosts:

/etc/nixos/configuration.nix
services.caddy = {
  enable = true;
  virtualHosts."homer.home.arpa".extraConfig = ''
      tls internal
      handle {
              reverse_proxy 192.168.xx.xx:8080 {
                  flush_interval -1
          }
        }
  '';
  virtualHosts."phpmyadmin.home.arpa".extraConfig = ''
      tls internal
      handle {
              reverse_proxy 192.168.xx.xx:8080 {
                  flush_interval -1
          }
        }
  '';
};

Pi-hole Local DNS Configuration

Go to the Pi-hole web interface. You can add domain/IP associations on the Local DNS Records page.

  1. Select in the navigation Local DNS > DNS Records
  2. Add the domain, for example: homer.home.arpa with the IP address of the Caddy server or container.

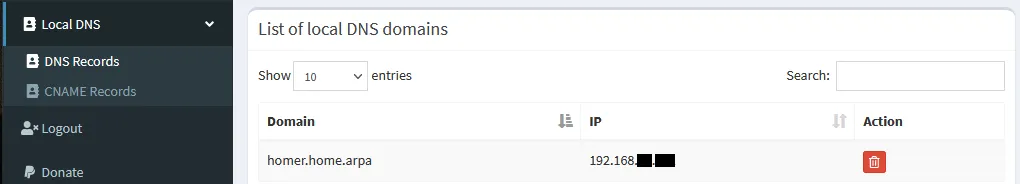

It will then look like this: Pi-hole local DNS

Root Certificate Installation

Now if you go to homer.home.arpa in a browser, it will indicate the connection is not trusted or will not work at all. I fixed this by having different devices and browsers trust the Caddy root certifcate.

The steps below assume that [[Caddy - NixOS Container Setup|Caddy is running as a container]]:

  1. Go to the shell inside the container with sudo podman exec -it caddy /bin/sh. If you use docker replace the command podman with docker
  2. View the content of the root certificate with cat /data/caddy/pki/authorities/local/root.crt
  3. Copy the contents of the root certificate into a root.crt file on your desktop, for example. Make sure you copy -----BEGIN CERTIFICATE----- and -----END CERTIFICATE----- along
  4. Exit the container shell with exit

Firefox (desktop)

  1. Go to about:preferences#privacy and scroll down to Certificates and click View Certificates...
  2. Within the Certificate Manager go to Authorities and choose to import the Caddy root certificate which you previously saved as root.crt.

Chrome or Vanadium (Android)

  1. Make sure you can access the root.crt file through the file manager on Android. This can be done, for example, by putting the file on Google Drive, Synology Drive or Proton Drive.
  2. Tap Security & privacy and then More security settings and then Encryption & credentials and then tap Install a certificate and choose for CA-Certificate.
  3. Then select your Drive in the navigation and install the certificate by tapping root.crt.

Favorites

Caddy Docs
