Guacamole on NixOS setup

Apr 23, 2024

Introduction

Guacamole on NixOS allows you to access your desktop environment and terminal via a web browser, supporting protocols like VNC, RDP, and SSH.

Setup

Add the RDP settings to configuration.nix

Linux

  # To edit use your text editor application, for example Nano
  services.xserver.enable = true;
  services.xserver.displayManager.sddm.enable = true;
  services.xserver.desktopManager.plasma5.enable = true;

  services.xrdp.enable = true;
  services.xrdp.defaultWindowManager = "startplasma-x11";
  services.xrdp.openFirewall = true;

Then add the Guacamole settings

Linux

# To edit use your text editor application, for example Nano
services.guacamole-server = {
  enable = true;
  host = "127.0.0.1";
  userMappingXml = ./guacamole/user-mapping.xml;
  # package = pkgs.unstable.guacamole-server; # Optional, use only when you want to use the unstable channel
};

services.guacamole-client = {
  enable = true;
  enableWebserver = true;
  settings = {
    guacd-port = 4822;
    guacd-hostname = "127.0.0.1";
  };
  # package = pkgs.unstable.guacamole-client; # Optional, use only when you want to use the unstable channel
};

In this case I am using the Guacamole package from the default channel. But you can also use a newer version from the unstable channel (if available).

Switch NixOS configuration

Now you can switch to the new NixOS configuration. Run the following command:
- Linux
# Open your terminal application sudo nix-collect-garbage # Optional: clean up sudo nixos-rebuild switch
You can view my complete configuration.nix here.
Create the user-mapping.xml

You need to enter the user information with which you can log in to Guacamole. And also the connections you want to use to connect to NixOS.
- Linux
# Open your terminal application echo -n <password> | openssl dgst -sha256 # Or use: # echo -n <password> > file.txt # sha256sum file.txt
Instructions:
- Required Replace <password> with your password, which will be used to log in to Guacamole
Remember the result (the hash after =).

Create the guacamole folder

Linux

# Open your terminal application
sudo mkdir -p /etc/nixos/guacamole

Add the following to /etc/nixos/guacamole/user-mapping.xml

Linux

# To edit use your text editor application, for example Nano
<?xml version="1.0" encoding="UTF-8"?>
<user-mapping>
    <!-- User using SHA-256 to hash the password -->
    <authorize
        username="<username>"
        password="<sha256 hash>"
        encoding="sha256">

        <connection name="NixOS Server SSH">
            <protocol>ssh</protocol>
            <param name="hostname">127.0.0.1</param>
            <param name="port">22</param>
        </connection>

      <connection name="NixOS Server RDP">
          <protocol>rdp</protocol>
          <param name="hostname">127.0.0.1</param>
          <param name="port">3389</param>
          <param name="ignore-cert">true</param>
      </connection>
    </authorize>
</user-mapping>
# IMPORTANT: Please read the instructions below

Instructions:

Required Replace <username> with your username, which will be used to log in to Guacamole
Required Replace <sha256 hash> with the sha256 hash generated earlier (step 4)

Check the results

Now you can browse to Cockpit by opening a web browser and going to: http://localhost:8080/guacamole. Replace localhost with the relevant IP address or FQDN if needed, and adjust the port if you changed it earlier.

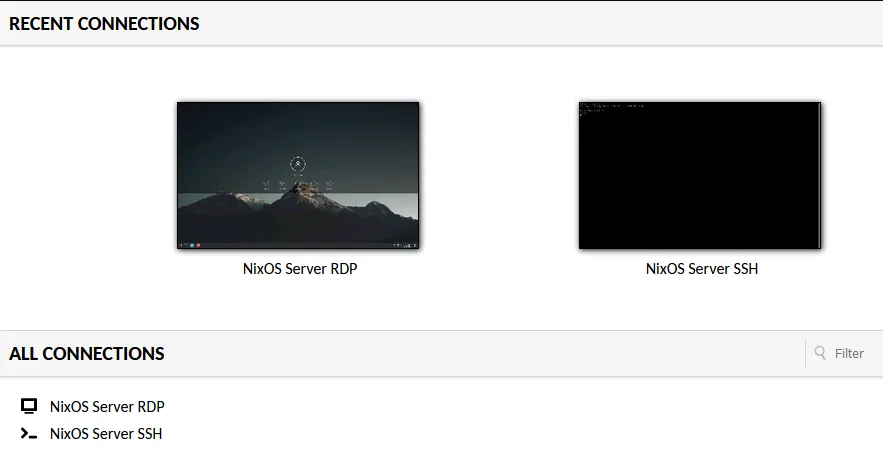

Then log in with your username and password. The result:

For an explanation of how to access Guacamole with a local domain name (local reverse proxy), for example guacamole.home.arpa served over HTTPS, please see this note.
