How to add Cockpit UI for Podman containers to NixOS

Nov 22, 2023

Introduction

Cockpit is a cutting-edge web-based graphical interface for server management. It allows you to administer servers effortlessly and includes a built-in terminal.

Personally, I utilize the NixOS package to monitor system logs, network settings, services, system resources, and CPU load and all without needing to touch the command line.

With the Cockpit UI for Podman containers, you can manage Podman containers directly in your browser. I thought it would be a useful addition to my NixOS server configuration. Although I won’t use it to create or update containers—I’ll handle that through the NixOS configuration—it’s convenient for quickly checking container statuses, viewing logs, and accessing the console.

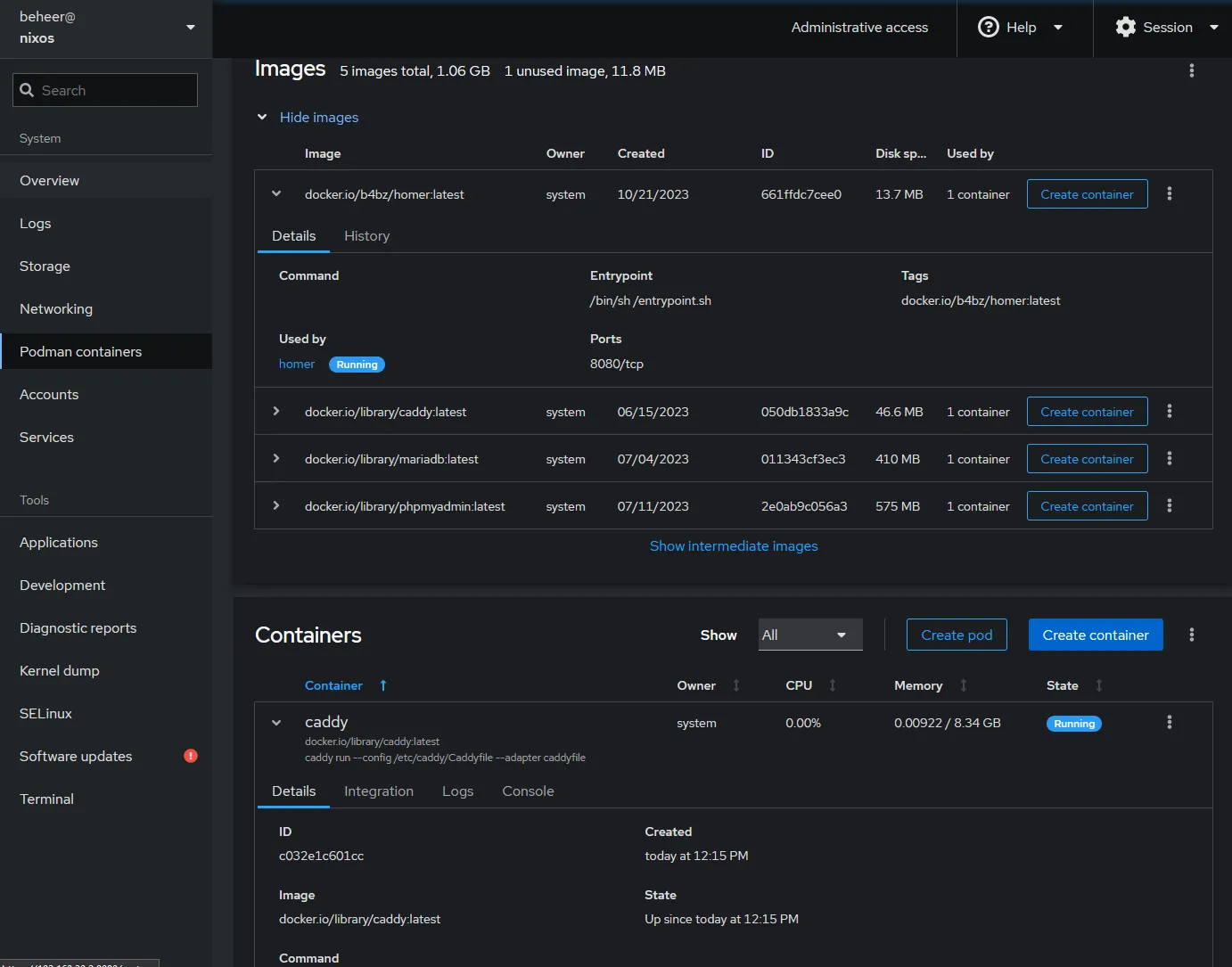

Cockpit Podman UI

How To

Unfortunately, Cockpit Podman is not available as a package. To resolve this, I added a custom package declaratively.

First create the packages/cockpit directory

Run the following command:

Linux

# Open your terminal application
sudo mkdir -p  /etc/nixos/packages/cockpit

Create /etc/nixos/packages/cockpit/default.nix

Linux

  # To edit use your text editor application, for example Nano
  { pkgs, ... }:

  {
    # virtual-machines = pkgs.callPackage ./virtual-machines.nix { };
    podman-containers = pkgs.callPackage ./podman-containers.nix { };
  }

You can add virtual-machines.nix in the same way, but we will ignore that for now.

Create /etc/nixos/packages/cockpit/podman-containers.nix

Linux

  # To edit use your text editor application, for example Nano
  { lib, stdenv, fetchzip, gettext }:

  stdenv.mkDerivation rec {
    pname = "cockpit-podman";
    version = "81";

    src = fetchzip {
      url = "https://github.com/cockpit-project/${pname}/releases/download/${version}/${pname}-${version}.tar.xz";
      sha256 = "sha256-7ibC1tUyVmabJ9yLFZQJGC/bBplqWjsBxORKyioQ8bE=";
    };

    nativeBuildInputs = [
      gettext
    ];

    makeFlags = [ "DESTDIR=$(out)" "PREFIX=" ];

    postPatch = ''
      substituteInPlace Makefile \
        --replace /usr/share $out/share
      touch pkg/lib/cockpit-po-plugin.js
      touch dist/manifest.json
    '';

    dontBuild = true;

    meta = with lib; {
      description = "Cockpit UI for podman containers";
      license = licenses.lgpl21;
      homepage = "https://github.com/cockpit-project/cockpit-podman";
      platforms = platforms.linux;
      maintainers = with maintainers; [ ];
    };
  }

The above is inspired by this script, but I modified it slightly to get it working again.

Adjust the version if necessary.

Add the cockpit-apps to configuration.nix

Linux

  # To edit use your text editor application, for example Nano
  { config, pkgs, lib, ... }:

  let
    cockpit-apps = pkgs.callPackage packages/cockpit/default.nix { inherit pkgs; };
  in
  {
    imports =
    [ # Include the results of the hardware scan.
      ./hardware-configuration.nix
    ];

    environment.systemPackages = with pkgs; [
      cockpit
      cockpit-apps.podman-containers
      # cockpit-apps.virtual-machines
    ];

  # Add the rest of the configuration here

  }

Switch NixOS configuration

Now you can switch to the new NixOS configuration. Run the following command:
- Linux
# Open your terminal application sudo nix-collect-garbage # Optional: clean up sudo nixos-rebuild switch
Check the results

Now you can browse to Cockpit and the Podman container UI by opening a web browser and going to: http://localhost:9090. Replace localhost with the relevant IP address or FQDN if needed, and adjust the port if you changed it earlier.
